Below

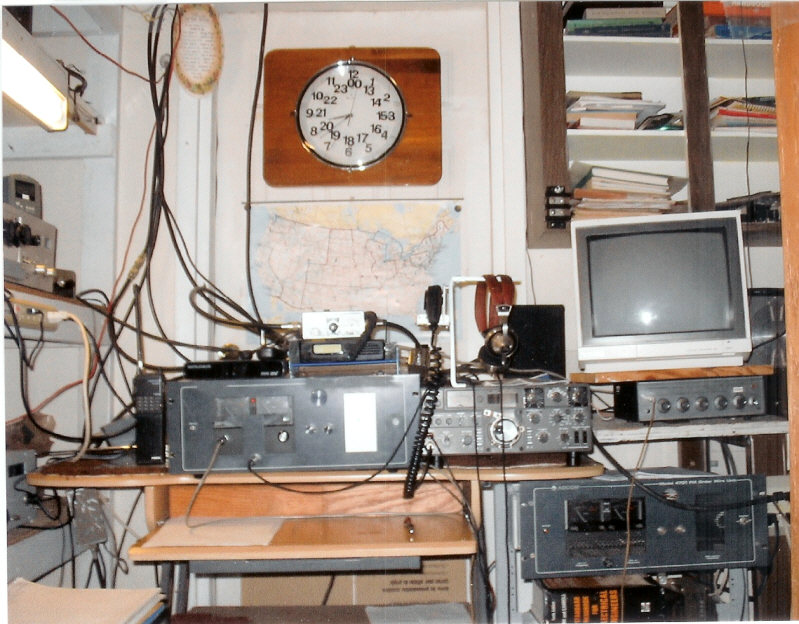

is the latest (2008) photo of my station. All equipment is on a
computer table that can be rolled forward to work on the rear. A
roll-out keyboard shelf works fine for logging, etc. The
repackaged audio enhancement unit is in an old cassette deck. Its
internal speaker is not presently in use, since I am using stereo
headphones.
Click
here for an expanded view of the power supply.
It is a refurbished WECo unit rated at 12 V, 20 A, variable from 0 to 20 V.
This supply originally served as the filament supply for the vacuum tube repeaters of the TD-2 microwave stations.
The two meters are arranged to "red line" when voltages are correct for input and output to the regulator.
A view of the equipment to the left of the main operating position.

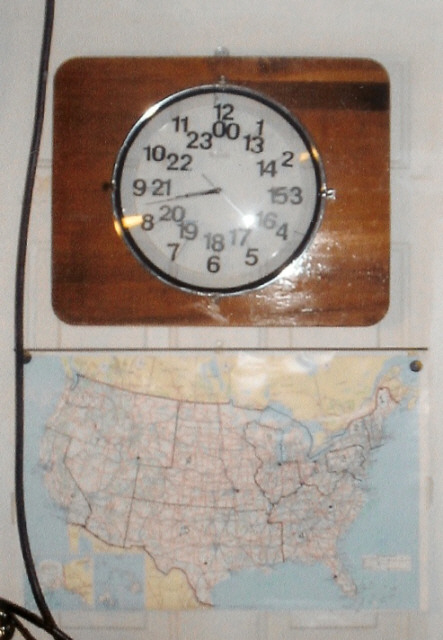

Above is a homemade 24-hour clock, using stick-on numbers. The clock is set in a cut-out of a wood panel.
On the right is a view of my Bell Ringers certificate.
